Inverter Hybrid Goodwe 10kW 3 Pha

Name: Inverter Hybrid Goodwe 10kW 3 Pha - Web Số1
SKU: 214
Price: 46800000 VND
Availability: InStock
Rating: 5 (1 reviews)

Trạng thái:

Còn hàng

Số lần xem:

5684

Giá bán:

46,800,000 đ

Giá gốc:

56,750,000 đ

0909 882 376

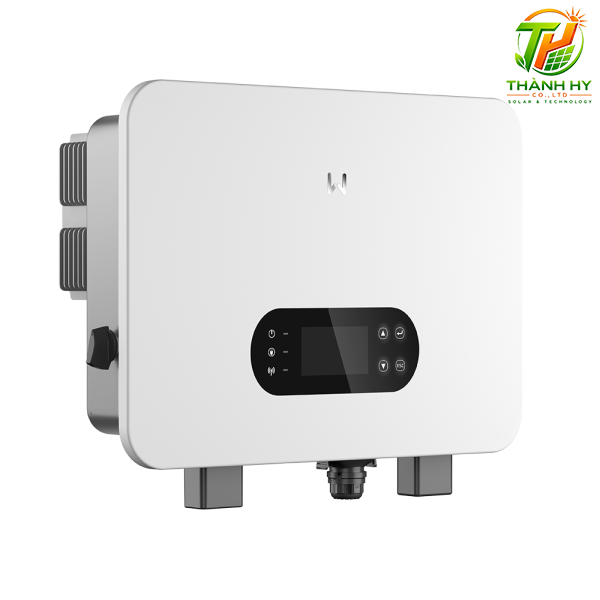

Inverter Hybrid Goodwe 10kW 3 pha
Model: GW10K-ET
Chế độ: Hòa lưới, Hybrid, Độc lập
Công suất: AC On grid 10kW
AC Backup: 10kW
Hiệu suất: 98.2%
Xuất xứ: Trung Quốc
Bảo hành: 5 năm

Chia sẻ:

Thông tin sản phẩm

Xem nhanh

Datasheet Biến tần Goodwe 10kW GW10K-ET 3 pha

Datasheet Biến tần Goodwe 10kW GW10K-ET 3 pha

Technical Data	GW10K-ET
Battery Input Data	Inverter Hybrid Goodwe
Battery Type	Li-Ion
Nominal Battery Voltage (V)	180-600
Max. Charging Current (A)*¹	25
Max. Discharging Current (A)*¹	25
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data	Biến tần Goodwe 10kW
Max. DC Input Power (W)	13000
Max. DC Input Voltage (V)	1000
MPPT Range (V)	200-850
Start-up Voltage (V)	180
Min. Feed-in Voltage (V)*³	210
MPPT Range for Full Load (V)	460-850
Nominal DC Input Voltage (V)	620
Max. Input Current (A)	12.5/12.5
Max. Short Current (A)	15.2/15.2
No. of MPP Trackers	2
No. of Strings per MPP Tracker	1
AC Output Data (On-grid)	Biến tần Goodwe 10kW
Nominal Apparent Power Output to Utility Grid (VA)	10000
Max. Apparent Power Output to Utility Grid (VA)*⁴	11000
Max. Apparent Power from Utility Grid (VA)	15000
Nominal Output Voltage (V)	400/380, 3L/N/PE
Nominal Output Freqency (Hz)	50/60
Max. AC Current Output to Utility Grid (A)	16.5
Max. AC Current from Utility Grid (A)	22.7
Output Power Factor	~1(Adjustable from 0.8 leading to 0.8 lagging)
Output THDi (@Nominal Output)	<3%
AC Output Data (Back-up)	Inverter Goodwe 10kW
Max. Output Apparent Power (VA)	10000
Peak Output Apparent Power (VA)*⁶	16000,10sec
Max. Output Current (A)	16.5
Nominal Output Voltage (V)	400/380
Nominal Output Freqency (Hz)	50/60 (±0.2%)
Output THDv (@Linear Load)	<3%
Efficiency
Max. Efficiency	98.2%
Max. Battery to Load Efficiency	97.5%
European Efficiency	97.5%
Protection	Goodwe 10kW GW10K-ET
Anti-Islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Short Protection	Integrated
Output Over Voltage Protection	Integrated
General Data	Inverter Hybrid Goodwe 10kW
Operating Temperature Range (°C)	-25~60
Relative Humidity	0~95%
Operating Altitude (m)	<4000
Cooling	Natural Convection
Noise (dB)	<25
User Interface	LED & APP
Communication with BMS*⁷	RS485; CAN
Communication with Meter	RS485
Communicaiton with Portal	Wi-Fi
Weight (kg)	30
Size (WidthHeightDepth mm)	516440184
Mounting	Wall Bracket
Protection Degree	IP65
Standby Self-Consumption (W)	<13
Topology	Battery Isolation
